When SSAS 2005 came out the recommendation for setting the slice for MOLAP partitions changed. This is what the “SQL Server Best Practices Article” said: “For MOLAP partitions, you do not have to specify the slice because the server will be able to figure out the relevant partitions after the data has been processed.” Most people have seen the slice property of a partition which you can see by looking at the properties of a partition in BIDS or SSMS. In addition to this slice property, behind the scenes when SSAS processes a partition it records which attribute members exist in each partition and stores this data as ranges of Data IDs (internal surrogate keys) for these attribute members into an XML file. This is called auto-slice. When queries come along, it checks this file for each partition to see if it contains relevant data and whether or not to scan it from disk if not already in memory.
It sounds great but it does not always work as expected. There are cases that when a query comes to SSAS with specific attributes in the where clause (for example a particular year in question), SSAS scans extra partitions with other unwanted data (for example other years that the query did not ask for). As a result, many people now recommend to set the slice manually to avoid the possibility of extra unwanted partition scans. Setting the slice also safeguards against loading wrong data into a partition. Even though a robust ETL and row count QA should not let such a scenario happen, if it does happen and the data in the partition does not match the slice specified, the partition processing will fail.
My recommendation is to go with the auto-slice and do not set the slice initially, then watch for extra partition scans. If you see that these extra partition scans are happening frequently and are causing an impact on query performance, then you should consider setting the slice manually if possible.
In this blog I provide a couple of scenarios that these extra partition scans can occur and show you how to read the related XML files and Data IDs. At the end I will give an example when setting the slice manually may not be always possible.
Unwanted partition scans
These are partitions that their data is not required to answer the current query. The unwanted partition scans can happen in at least the following cases:
(1) Partitions with Less than 4096 rows
Sometimes a partition has fewer than 4096 rows. 4096 is the default number for SSAS to build indexes for a partition and it is defined by IndexBuildThreshold parameter in the msmdsrv.ini file. When the number of rows falls below 4096 SSAS does not build any indexes for the partition. In the absence of indexes, information about ranges of data ids of related attributes for the partition is not stored by SSAS. If you see unwanted partition scans this could be the case. However, since these partitions are small (unless if you have many of them being scanned together) the impact on performance is usually negligible. Most fact tables in a data warehouse have more than 4096 rows so this is not very common. However it is possible to see this condition temporarily even with larger fact tables if you load them in smaller chunks for example daily. In this case, the first couple days of a month, the row count could be less than 4096 and as a result until the partition count gets larger than 4096, there will be no indexes and auto-slice information available. On the other hand chances are that most users ask for the most recent data in their queries so this kind of partition would be part of most queries anyways.
(2) Partitions with overlapping data ids
When indexes are built for each partition, ranges of data ids are recorded for each related attribute with a min and a max value. There are cases where the ranges of data ids for one attribute can have overlap between two or more partitions. Mosha gives several examples of how this overlap can happen. He provides a query to look at the data ids generated by SSAS in MDX. I used this query to look at the data ids for several of the Date dimension attributes in AdventureWorks on my machine. You can also see the ranges of Data IDs recorded for each partition by SSAS by looking at the info XML files created for each partition. I will go over the info file and the results of the queries from AdventureWorks next.
You can find these XML files under the data folder where SSAS stores the cube information. In AdventureWorks, the [Internet Sales] measure group is partitioned by Calendar Year. Interestingly the slice property is set for each partition. I removed all the slices from all Fact Internet Sales partitions to investigate how the auto-slice works.

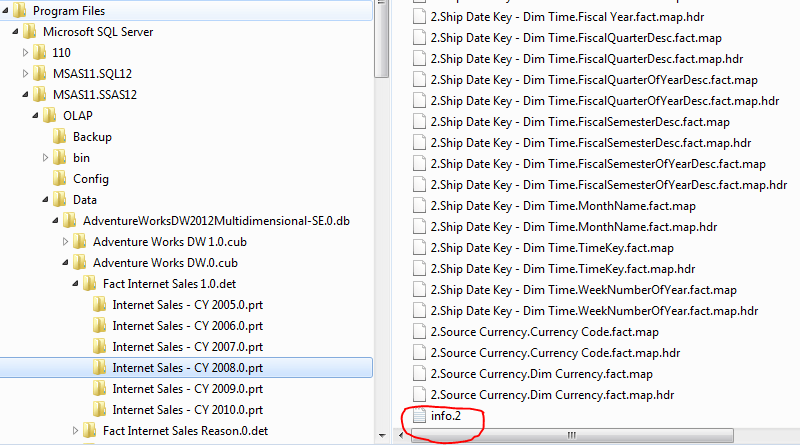

The following picture shows the path to the info file for “Fact Internet Sales – CY 2008” partition from the AdventureWorks sample database for SSAS 2012. This partition has more than 4096 rows and you can see many files under this folder. Most of these files are index files (out of scope for this blog). There is also an info file in this folder. The extension of this file is a number that represents some kind of internal versioning to SSAS. Note how the number matches the prefix to all the other index files. This number increases every time the measure group is processed.

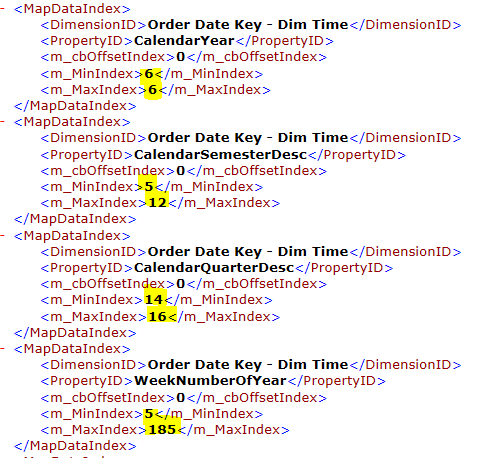

When you open the info file, you can see the Data IDs recorded for each related attribute. You can see the data id ranges under the tag section of <MapDataIndices>. Note that the partitioning dimension for Fact Internet Sales is the Date dimension in the cube and it is connected to Order Date in the fact table.
If you look at the folder for partition “Internet Sales – CY 2005” , you see far fewer files than you see under the folder for the partition “Internet Sales – CY 2008”.
Plus the info file does not contain any <MapDataIndices> tags. There are no ranges of Data IDs recorded. The reason is that the row count for the “Internet Sales – CY 2005” partition is below 4096.
select
count(*) from [dbo].[FactInternetSales]
where
[OrderDateKey] between 20050101 and 20051231 –Returns 1013 rows.
In the following section I go over the ranges of Data IDs stored for the following attributes: Calendar Year, Calendar Quarter, Calendar Month and Calendar Week. As you will see soon there is no range overlap cases until we get down to the Week level.
(1) Calendar Year
The following query returns the Data IDs of the [Calendar Year] attribute.
WITH
MEMBER [Measures].CalendarYearDataID AS
DataId
([Date].[Calendar].CurrentMember)
SELECT
[Measures].[CalendarYearDataID] ON 0
, [Date].[Calendar Year].Members ON 1
FROM
[Adventure Works];
Here are the query results:
Note how the data IDs are not in the order you would expect, they don’t have the same order as the natural order of the years. If you look at the info files for the 2007 and 2008 partitions, this is what you find:
The following is a section of the info file for the 2007 partition.
The following is a section of the info file for the 2008 partition.
Let’s assume a query comes in asking for data for all of 2008.
SELECT
{[Measures].[Internet Sales Amount]} ON COLUMNS,
{[Product].[Product Line].[Product Line].Members} ON ROWS
FROM
[Adventure Works]
Where
[Date].[Calendar Year].&[2008]
If you run this query with a clear cache, the only partition that should be scanned is the “Internet Sales – CY 2008” partition. However the partitions for 2006 and 2007 get scanned as well. This is because they have less than 4096 rows and no indexes and slice information is stored for them. (I removed their slice property as well, else in the absence of the index files, SSAS can still use the Slice property).
Note that the overlapping of the ranges of Data IDs cannot happen for an attribute level that you use only of member of which to partition with. In the above example, there is only one year in each partition so the ranges for Year Data IDs will not overlap, since they only contain one member. Setting the the slice at the Year level manually would however prevent the other small partitions from getting scanned.
(2) Calendar Quarter
The following query returns the Data IDs of the [Calendar Quarter] attribute.
WITH
MEMBER
[Measures].CalendarQuarterDataID AS
DataId
([Date].[Calendar].CurrentMember)
SELECT
[Measures].[CalendarQuarterDataID] ON 0
, [Date].[Calendar Quarter].Members ON 1
FROM
[Adventure Works];
Here are the query results:
The Data IDs for Calendar Quarters are in the same order as you expect them to be, all Quarters in 2007 have Data IDs less than Data IDs of Quarters in 2008. This means there is still no chance for a range overlap to happen for Calendar Quarter either.
If you look at the info files for the 2007 and 2008 partitions, this is what you find:
The following is a section of the info file for the 2007 partition.
The range has a min value of 10 and a max value of 13 as expected.
The following is a section of the info file for the 2008 partition.
The range has a min value of 14 as expected but note how the max value is 16 instead of 17. Why? The last day with data in Fact Internet Sales for 2008 is July 31. The last Quarter is empty and hence is not recorded in the range.
Select
max(OrderDateKey) from [dbo].[FactInternetSales]
where
[OrderDateKey] between 20080101 and 20081231
–Retuns 20080731
(3) Calendar Month
The following query returns the Data IDs of the [Calendar Month] attribute.
WITH
MEMBER
[Measures].MonthDataID AS
DataId
([Date].[Calendar].CurrentMember)
SELECT
[Measures].[MonthDataID] ON 0
, [Date].[Calendar].[Month].Members ON 1
FROM
[Adventure Works];
Here are the query results:
The Data IDs of Months are the same order as you expect them to be. For example all Months in 2007 have Data IDs that are less than Data IDs of all months in 2008. If you look at the info files you will see the corresponding Month Data IDs stored. The last Month Data ID stored for 2008 belongs to July.
The following is a section of the info file for the 2007 partition.
The range has min value of 26 and max value of 37 as expected.
The following is a section of the info file for the 2008 partition.
The range has a min value of 38 as expected. The max value is 44 which is the Data ID of July. July is the last month with data in this partition.
Let’s assume a query comes in asking for data for January of 2008 which is 38. In this case, the “Internet Sales – CY 2008” partition will be scanned because 38 fits between its min and max range for Month data IDs. Partitions “Internet Sales – CY 2008” and “ “Internet Sales – CY 2008” will also be scanned since they have no auto slice information stored. (I removed the slice property as well.)
(4) Calendar Week
This is where it gets interesting: You will see how the ranges of Week Data IDs recorded for multiple partitions overlap.
The following query returns the Data IDs of the [Calendar Week] attribute.
WITH
MEMBER
[Measures].WeekDataID AS
DataId
([Date].[Calendar Week].CurrentMember)
SELECT
[Measures].[WeekDataID] ON 0
, [Date].[Calendar Week].[Calendar Week].Members ON 1
FROM
[Adventure Works];
Here are the query results:
The Data IDs of the [Calendar Week] are not what you expect. Weeks 1 of all years are listed first, then weeks 2 and so on. If all partitions had row counts larger than 4096, the following ranges would have been stored for Data IDs of [Calendar Week] for each partition. We know this is not true in AdventureWorks and nothing is stored for partitions of 2005 and 2006. For partitions of 2007 and 2008, you can see how the ranges formed by Min and Max values have overlap. A query asking for the first week of 2008 with a Data ID of 5, only needs data from the 2008 partition however the Data ID of 5 fits in the Min and Max values of both of the partitions, as a result 2007 will be scanned as well (with a cold cache). Partitions 2005 and 2006 will also be scanned since they don’t have any ranges stored for them (and I removed the slice property).
|
Partition |
Min Calendar Week Data ID |
Max Calendar Week Data ID |
| Internet Sales – CY 2005 | ||
| Internet Sales – CY 2006 | ||
| Internet Sales – CY 2007 | 4 | 316 |
| Internet Sales – CY 2008 | 5 | 317 |
| Internet Sales – CY 2009 | 6 | 318 |
| Internet Sales – CY 2010 | 7 | 319 |
This is what you find in the info files:
The following is a section of the info file for the 2007 partition.
The following is a section of the info file for the 2008 partition.
Once again the Max is 185 not 317. 185 is the ID of the last week with data in 2008.
If you have frequent queries coming at week level and you can confirm that these extra scans are putting a burden on your system, then follow Mosha’s blog to specify the slice at the week level manually.
When setting the slice makes partition processing fail
If you set a slice property manually to a member that does not exist in a dimension yet, the partition processing fails with this message:
"Errors in the OLAP storage engine: The restrictions imposed on partition slice where violated."
SSAS takes what is specified as a slice and turns it into a set by running StrToSet(“The Slice Specified”,CONSTRAINED) on it. The Constrained parameter is what does not allow members that don’t exist to be part of the set.
For example, the following query runs successfully.
–This works
Select {[Measures].[Internet Sales Amount]} ON COLUMNS, StrToSet("{[Date].[Calendar Year].[CY 2008]}",CONSTRAINED) ON ROWS
FROM
[Adventure Works]
–Returns $9,770,899.74
The following query fails:
–This fails.
Select {[Measures].[Internet Sales Amount]} ON COLUMNS, StrToSet("{[Date].[Calendar Year].[CY 2013]}",CONSTRAINED) ON ROWS
FROM
[Adventure Works]
The above query fails with the following message:
Executing the query …
Query (3, 2) The restrictions imposed by the CONSTRAINED flag in the STRTOSET function were violated.
Execution complete
Typically partition are created by some sort of program or XMLA script that runs along with ETL in a Production environment and creates new partitions as new data arrives. The slice property can be set programmatically at the same time if needed. Some implementations don’t have this mechanism in place for one or another reason and the partitions are created manually in a development environment and then moved to a production environment. In this case usually several future partitions are created to catch future data for several months or years until someone recreated the partitions. Now assume that the Date dimension that is used for partitioning is only populated up until the current date. There are no future months, quarters, … dates in it. In this scenario, it is not possible to set the slice for future partitions as their processing fails with the messages shown previously.
Bottom Line
Auto Slice works fine in most cases, the rest of the time you have to watch for unwanted partitions scans and consider setting the slice if you see extra partition scans that have a significant impact on performance.
